This fish feed pellet mill plant can produce various fish feed pellets, including grass carp feed, herring feed, carp feed, trout feed, tilapia feed, salmon feed, cat fish feed, etc. The final pellet produced is between 0.5 mm-12mm.
Herm machinery high-quality fish feed pellet mill plant can produce various fish feed pellets, including grass carp feed, herring feed, carp feed, trout feed, tilapia feed, salmon feed, catfish feed, etc. The raw materials of the complete fish food plant production line include fishmeal, homemade fishmeal, alcohol masterbatch, soybean phosphatide, soybean meal, peanut meal, shrimp flour, sub-powder, wheat gluten meal, vegetable oil, etc.
The final pellet produced is between 0.5mm-12mm. For example, grass carp 0.8-6.0mm pellet, herring 0.5-6.0mm pellet, carp 0.8-5.0mm pellet, bream 0.5-3.5mm pellet, rainbow trout 0.8-3.0mm pellet, trout:0.8-3mm pellet, tilapia:0.8- 4mm pellet.

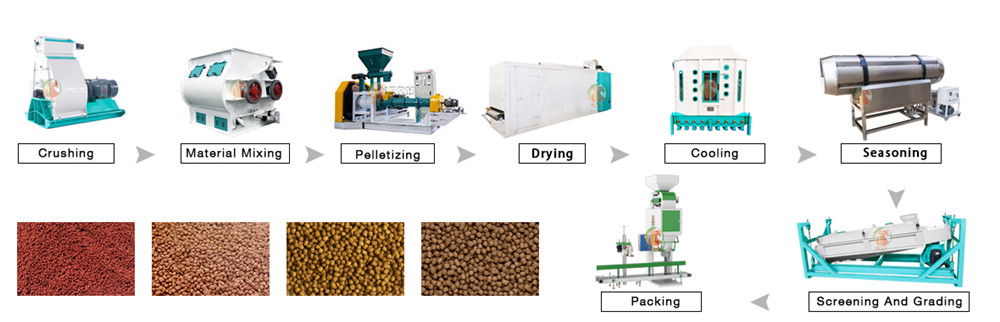

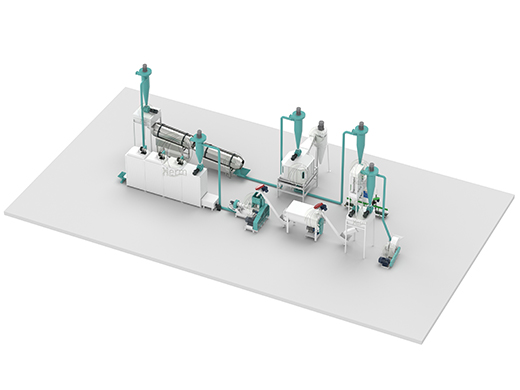

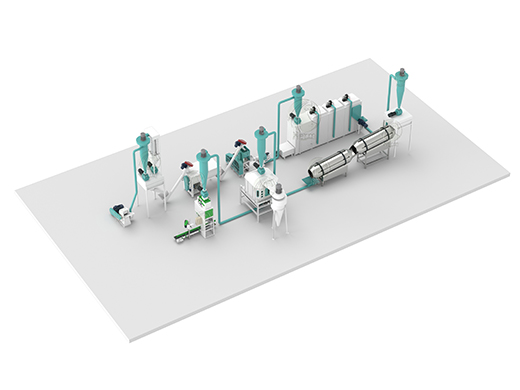

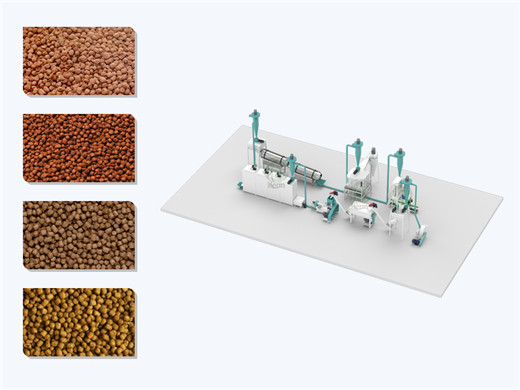

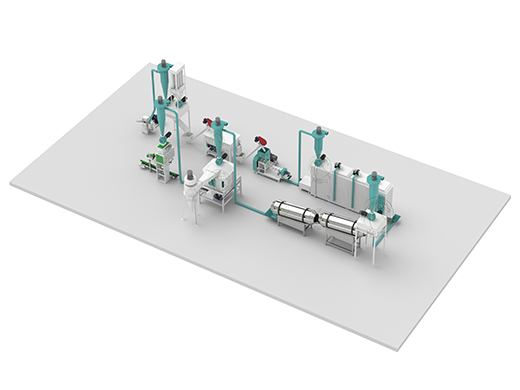

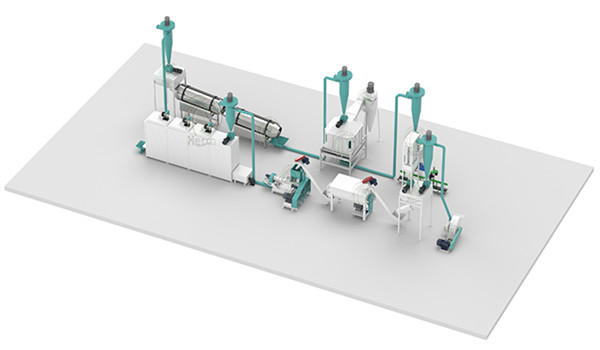

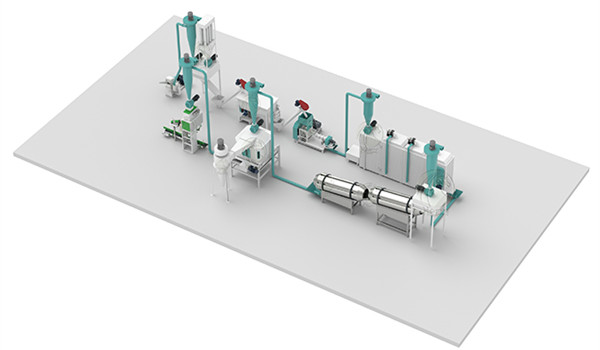

The complete fish feed production line includes a feed grinder, feed mixer, feed dryer, feed cooler, oil spray machine, and packing machine which are connected by conveyors or elevators. The feed pellet can float on the water for 12 hours at least. Adjusting the feed formulation also can make a sinking feed pellet. The pellet size is from 1mm to 12mm by changing the molds.
The products can have different shapes, unique flavors, rich nutrients, and fine textures to meet the different eating habits of animals. With Super automation control and high production efficiency, this fish feed production line is the best choice for medium and big-sized feed mills and breeding farms.
1. Cleaning Of Raw Materials And A Coarse Crushing
There are generally two forms of raw materials used in feed mills: one is powder, which does not need to be coarsely crushed. The other is pellets, which are materials that need to be coarsely crushed. Primary coarse pulverization is the pre-treatment process of ultrafine pulverization in aquatic feed processing. Its main purpose is to reduce the particle size difference and variation range of materials, improve the working condition of the ultrafine grinder, increase the working efficiency, and guarantee the ultrafine grinder's Stable product quality.
2. The First Batching And Mixing
The first batch of ingredients is mainly the preparation of popular raw materials, that is, the preparation of relatively large materials in the formula. This process is mainly completed by the electronic batching scale. The first batching and mixing is also the pre-treatment process of ultra-fine pulverization, which is mainly to reduce the variation range of material particle size, improve the working condition of the pulverizer, and increase the working efficiency of the pulverizer, and ensure the quality of the product.
3. Secondary Crushing And Mixing Of Secondary Ingredients
Due to the low food intake of aquatic animals, short digestive tract, and poor digestion capacity, aquatic feed requires a very fine particle size to increase the surface area of the feed, increase the contact area between the digestive juice of aquatic animals and the feed, and increase the feed of aquatic animals. The digestibility and feed remuneration; at the same time, due to the low intake of aquatic animals, the mixing uniformity of the feed is required to be reflected in a smaller range, which also requires the aquatic feed to have a finer particle size. For example, all the shrimp feed must pass the 40-mesh analytical sieve, and the 60-mesh sieve must be less than 5%, so the micro-grinding process must be used. Various raw materials enter the secondary mixer after secondary batching. There is an artificial feeding port above the secondary mixer, which is mainly used for adding trace additives. After the material is pulverized and mixed with the secondary ingredients, it enters the subsequent process---expansion granulation process.
4. Puffing And Granulating Section
In the extrusion process, the material actually goes through a cooking process under high temperature, high humidity, and high pressure. In this process, the physical and chemical properties of the material change strongly, and the moment the material is extruded from the die hole because the pressure suddenly drops from high pressure to about 100kPa, the water in the feed is immediately transformed from liquid to gas and is emitted from the feed. So that the material is expanded to form the so-called expanded feed. Because this feed not only has the advantages of general hard pellet feed: good palatability, avoids automatic classification of products, is convenient for transportation, helps digestion, reduces waste in the feeding process, etc., but also has unique advantages: starch in the feed The gelatinization degree is high, the protein is easier to digest, and the utilization rate of the animal's feed is improved; it has excellent float ability, which is convenient for observing the feeding situation of fish and can control water pollution to the greatest extent. These are also the main reasons why extruded feed is widely used.
5. Particle Drying And Cooling Section
After the material is extruded by the extruder, it will form squishy particles (with a moisture content of 25% to 30%). At this time, it is best to use pneumatic conveying instead of using a hoist to lift. Due to the high moisture content of the material conveyed by pneumatic force, it must be dried in the dryer to reduce the moisture of the material to about 13%. After the materials are dried, they enter the external spraying system. The external spraying of particles is mainly to meet the energy requirements of fish and reduce the loss of heat-sensitive substances during processing. Nutrients that should not be added in the previous process can be supplemented by spraying, and at the same time, it can improve the palatability of the feed and reduce the powder content. The best working temperature for this process is around 80°C. After the material passes through the external spraying system, it can enter the countercurrent cooler for cooling.
6. Particle Screening And Packing Section
The cooled material is lifted by a hoist and then crushed into the plane rotary screen for classification. The grading sieve is generally a two-layer sieve, and the material on the lower sieve is the finished product, which can be directly entered into the finished product warehouse, and then weighed and packaged.
Feed Grinder: mainly used for grinding all kinds of raw materials like soybean, maize, etc.
Feed Mixer: mainly used to mix all kinds of raw material evenly, such as wheat meal, corn meal, sorghum meal, bone meal, meat meal, and so on, it also can mix other micro-ingredients such as vitamins, amino acids, trace elements, and other feed additives.

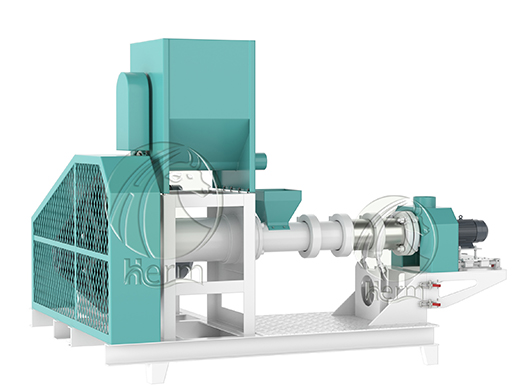

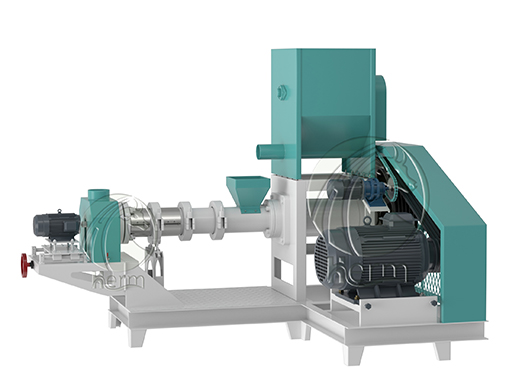

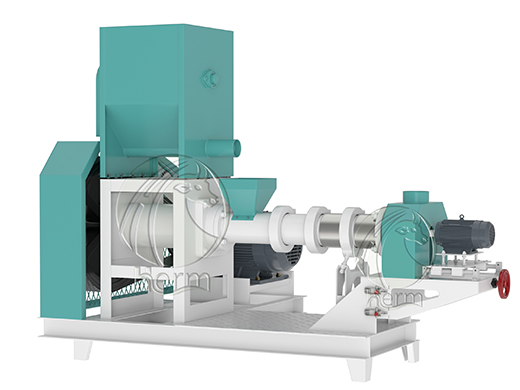

Dry Type Fish Feed Making Machine: it is the main machine to make the raw materials into feed pellets.
Feed Dryer: to reduce the moisture content of the feed pellet.
Feed Cooler: low the temperature after pellet drying with a higher temperature.
Oil spray machine: used to spray oil onto the surface of the feed pellet. Which is delicious food that can attract the fish to eat the pellet. Second, it is better for storage.
Pellet Packing Machine: packing the finished feed pellet into bags, and 1-50kg per bag, is more convenient for storage and transport. The process includes filling, weighing, and sealing.
Feed conveyors and elevators: which are used between machines. It can save labor and make the line more automatic.
We can design and supply different capacities of the complete line according to customers’ requirements. Usually have 200kg/h, 350kg/h, 500kg/h, 800-1000kg/h, and 2000kg/h.
