The feed pellet mill is one of the indispensable pieces of equipment in the feed mill plant. It can be used alone or in the feed pellet production line. The feed pellet machine can make various animal feeds, such as poultry feed, ruminant feed, livestock feed, etc.

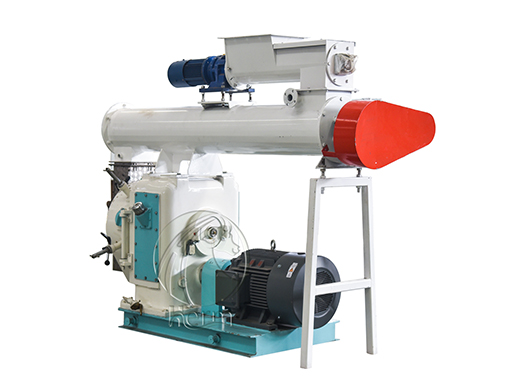

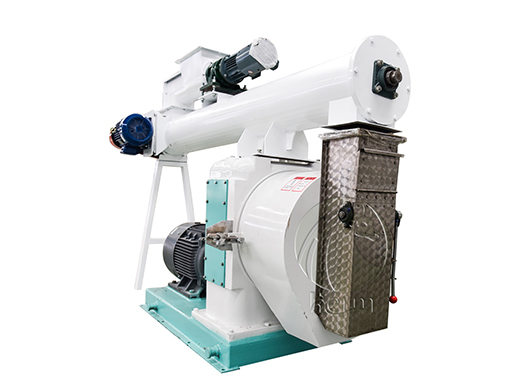

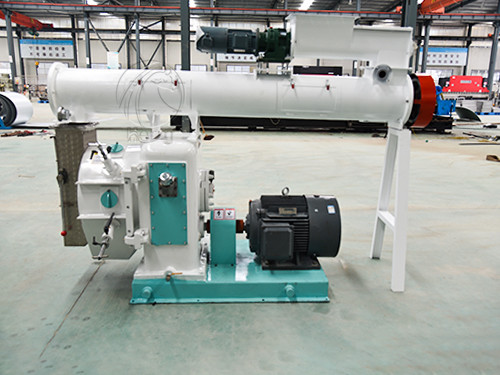

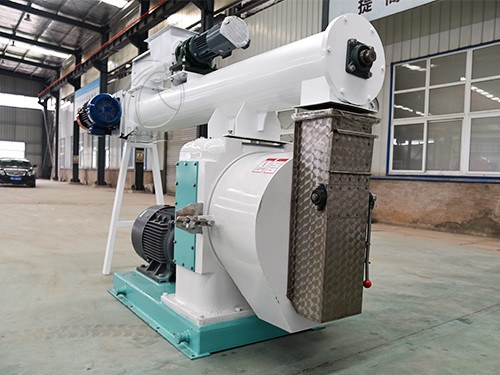

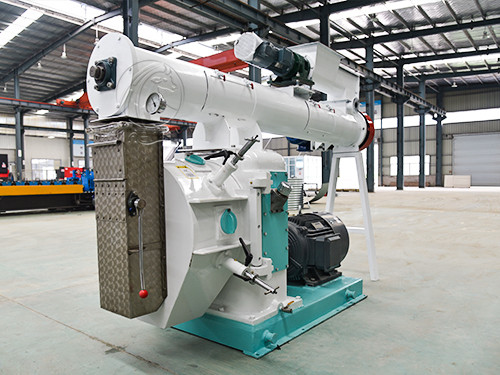

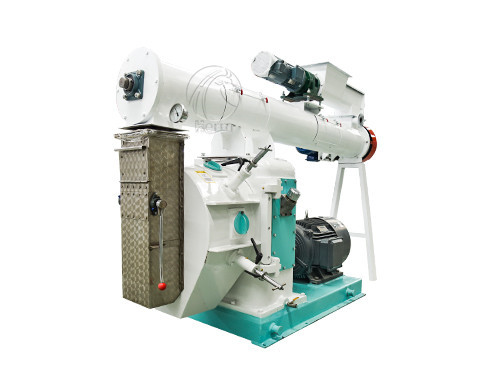

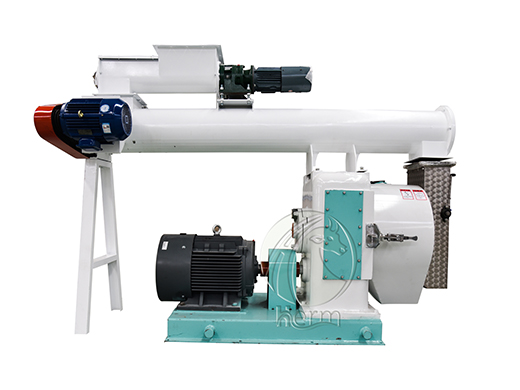

The HMLH250 feed pellet mill is one of the indispensable pieces of equipment in the feed mill plant. It can be used alone or in the feed pellet production line. The feed pellet machine can make various animal feeds: poultry feed, such as chicken feed, duck feed, goose feed, and bird feed; ruminant feed, such as cattle feed, sheep feed, and camel feed; livestock feed, such as horse feed, pig feed, rabbit feed, etc.

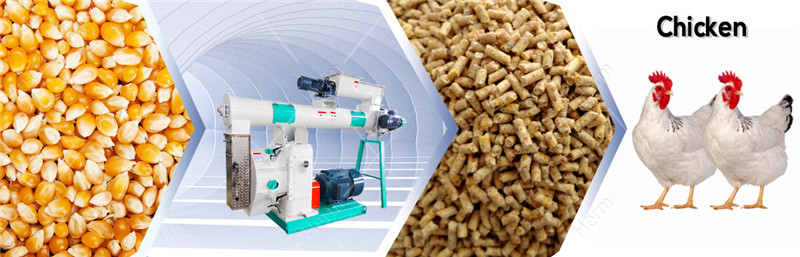

Herm machinery small scale easy to use SZLH250 feed pellet mill is a horizontal ring die pellet machine, it is applied for processing grains such as corn, wheat, and beans into animal feed pellets, aquatic feed pellets, and pet food, mainly suitable for 1-2 ton animal feed pellet production line. This machine features of compact structure, fine appearance, high capacity, low power consumption, convenient operation, and reliable performance.
1. High efficiency
-Stable two-motor timing belt drive, large torque but low noise;
-The optimized area-to-power ratio of ring die, maximum output;
- Stable production and uniform pellets were obtained.
2. Flexible production
-Wide pellet feed range: φ2.0mm-φ12mm;
3. User-friendly
-Hydraulic system for die changing and roller adjusting, quick and precise operation;
-Auto-lubrication system and die& roller lifting device, saving labor cost;
-On-site touchscreen control system is optional;
4. Hygiene & safety
-CE standard design and available stainless steel conditioner for feed;
-Humanized design and safety.
5. Customizable solution
-Including machine size, ring die, roller, conditioner, and steam system. hydraulic system, auto-lubrication system, die & roller lifting device and etc.
| Model | Main Motor Power (kW) | Mold Dia(mm) | Feeder Power (kW) | Finished pellets size (mm) | Yield (t/h) |
| HMLH250 | 22 | 1.5 | 250 | 1.5-12 | 1.5-2.2 |
| HMLH320 | 37 | 2.2 | 320 | 1.5-12 | 2-4 |
| HMLH350 | 55 | 2.2 | 350 | 1.5-12 | 2-6 |
| HMLH400 | 90 | 3 | 400 | 1.5-18 | 3-8 |
| HMLH420 | 110 | 5.5 | 420 | 1.5-18 | 4-12 |
| HMLH508 | 160 | 7.5 | 508 | 1.5-18 | 4-18 |
| HMLH558 | 180/200 | 11 | 558 | 1.5-18 | 15-25 |
| HMLH678 | 220/250 | 11 | 678 | 1.5-18 | 20-30 |
| HMLH768 | 280/315 | 11 | 768 | 1.5-18 | 30-35 |
| HMLH858 | 280/315 | 15 | 858 | 2.0-18 | 35-40 |
